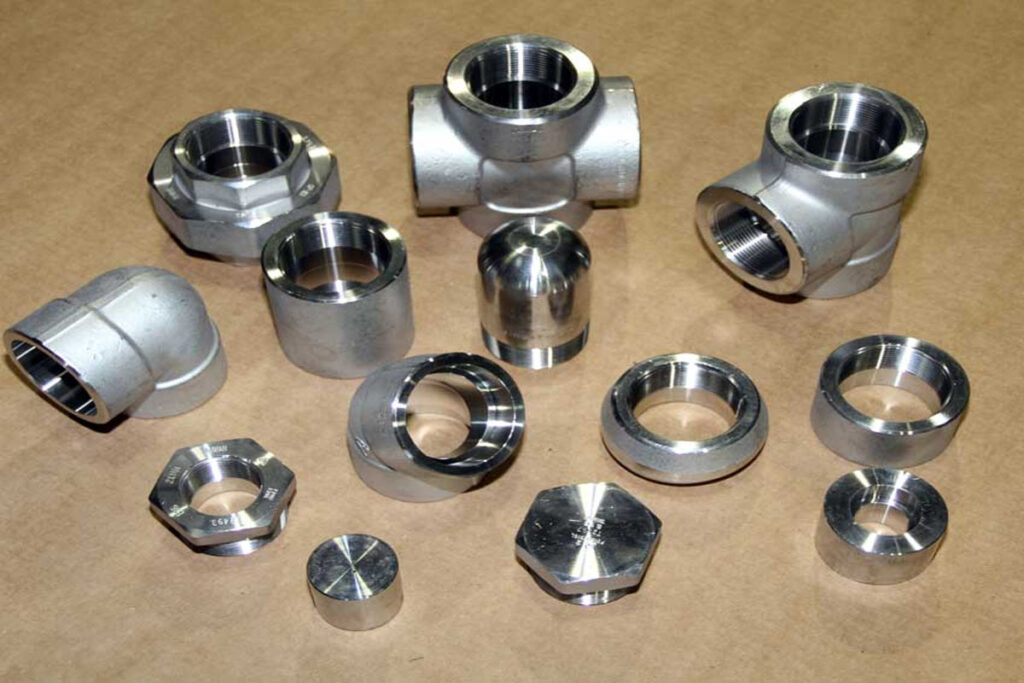

Forged fittings provide high tensile strength, stability, resistance to rust and corrosion, and excellent efficiency. We follow quality requirements when manufacturing these forged fittings by utilizing high-grade materials. These goods come in a range of sizes, shapes, and designs to meet the unique needs of our customers. These items are available from us at the most affordable costs to our valued customers.
Forged Fittings Specification
| Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturing Standards of Forged Fittings
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Socketweld / Threaded 100% Radiography Tested
| Products | Size | |
|---|---|---|
| ASTM A182 SS 90° Elbow | ASTM A182 SS 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS Forged Tee | ASTM A182 SS Union | |
| ASTM A182 SS Forged Cross | ASTM A182 SS Insert | |
| ASTM A182 SS Screwed Bushing | ASTM A182 SS Threaded Pipe Nipple | |
| ASTM A182 SS Forged Socket weld Cap | ASTM A182 SS Screwed Coupling | |
| ASTM A182 SS Forged Plug | ASTM A182 SS Street Elbow | |
Stainless Steel | ASTM A-182 3000 lbs / 6000 lbs / 9000 lbs ASTM A-182 TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
Titanum | ASTM / ASME SB564 Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel |
High Nickel Alloys | ASTM B564 / B335 / B649 / B462 / B151 – Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
Stainless Steel Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS, 3000 LBS, 6000 LBS & 9000 LBS, 150 LBS, 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap.
Available Grade: 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17 4PH, 15 5PH, 410, 420.
Nickel Alloy Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS, 3000 LBS, 6000 LBS & 9000 LBS, 150 LBS, 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap.
Available Grade: INCONEL 600, 601, 625, 718, 800, 800H, 800HT,825, 925. SMO 254, ALLOY 20(20CB3), MONEL 400, 500K, RA 330, HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 7
Duplex/ Super Duplex Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS, 3000 LBS, 6000 LBS & 9000 LBS, 150 LBS, 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap.
Available Grade: UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55).
Copper Nickel Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS, 3000 LBS, 6000 LBS & 9000 LBS, 150 LBS, 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap.
Available Grade: Copper Nickel 90/10 and Copper Nickel 70/30.
